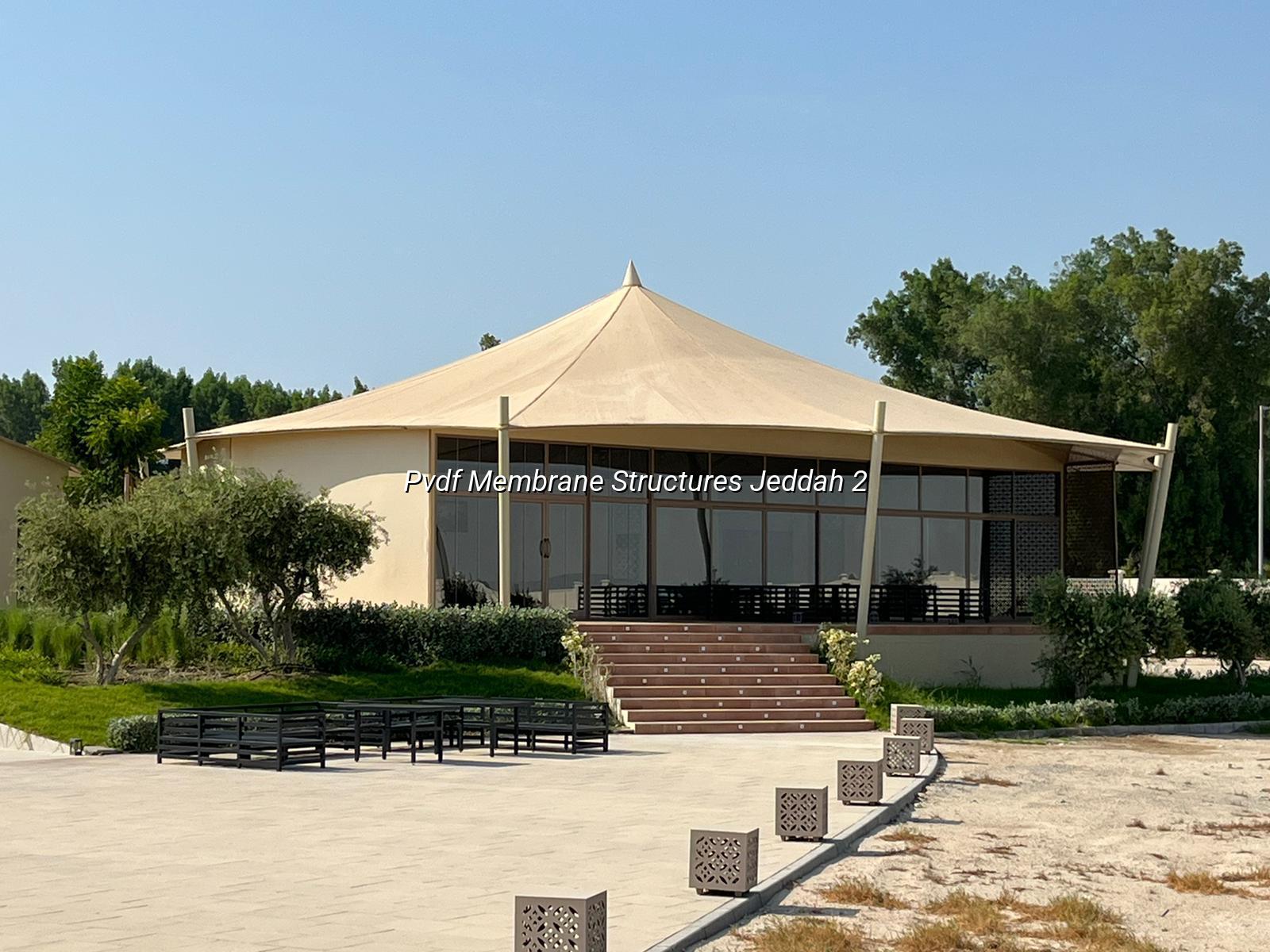

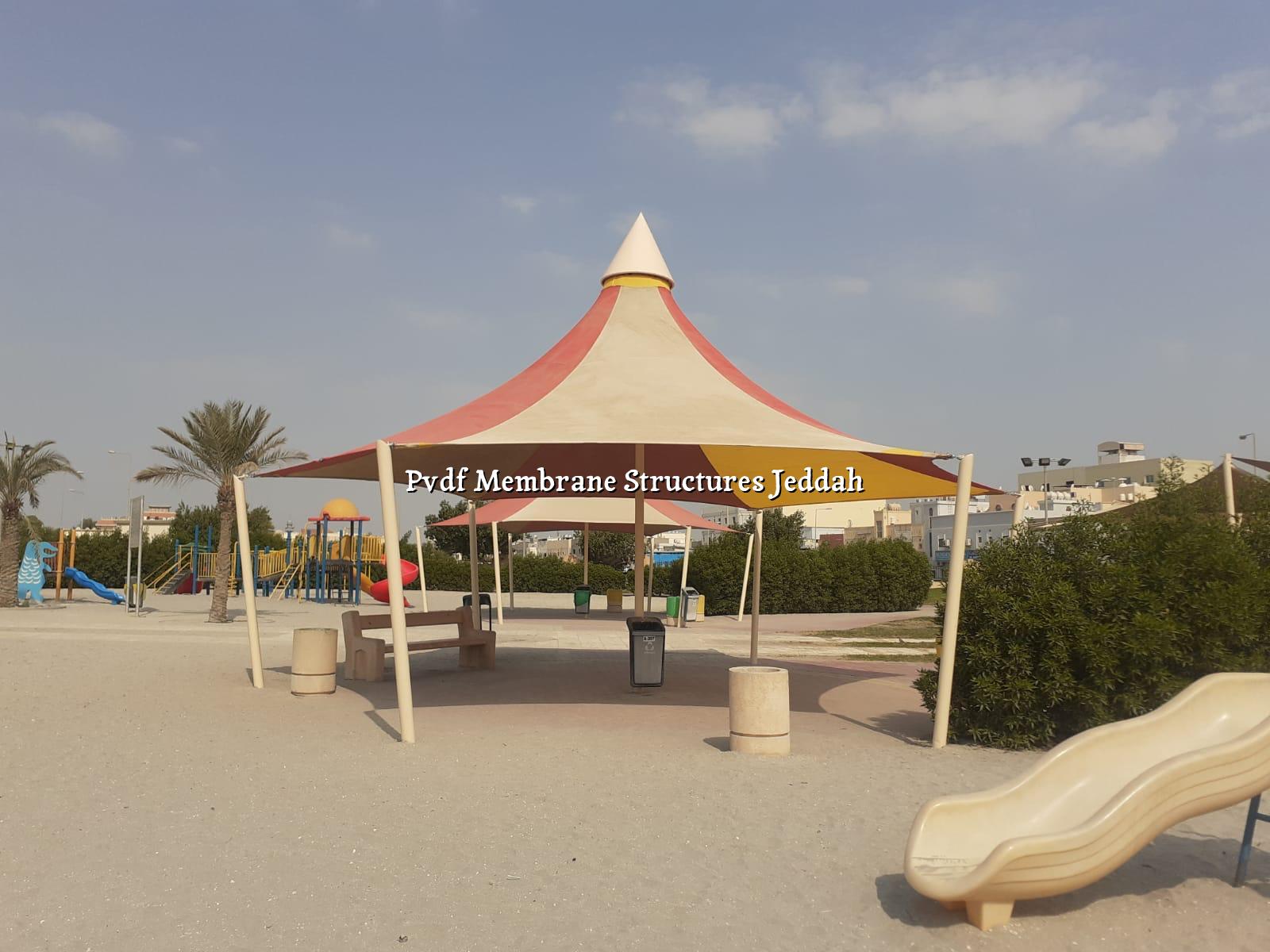

PVDF Membrane Structures Jeddah

What Are PVDF Membrane Structures?

PVDF membrane structures Jeddah are architectural fabric systems that use PVDF-coated membranes fixed to engineered steel frames to provide durable, sun-shaded spaces across commercial and public projects. Architects, contractors and facility managers in Jeddah specify PVDF when they need a clean finish, high UV resistance and predictable ageing in the Gulf climate. These systems keep areas cooler, reduce glare and give a clear aesthetic alternative to bulky roofs.

CI Shade designs, engineers and installs PVDF membrane projects across Saudi Arabia and Bahrain from our 8,000 m² production facility. We deliver Gulf-stamped calculations (120–175 kph wind design), ISO processes and Aramco-approved execution — the full project chain from shop drawings to handover.

Why Choose PVDF Membrane Structures?

PVDF membrane systems combine a thin, high-performance coating with robust steelwork to survive Gulf conditions while keeping visual lightness. The membrane's PVDF topcoat resists UV degradation and staining; the underlying PVC or polyester core provides tensile strength. CI Shade handles the engineering side in-house, so the membrane spec, steel grade and connection details are selected together — not handed off between trades.

Engineered for the Gulf Climate

Jeddah demands materials that resist intense sunlight, salt-laden air and sudden wind events. We design structures to the project's required wind rating, commonly within the 120–175 kph range for larger canopies. Expect measured heat reduction at ground level, anti-soiling PVDF finishes that cut dirt adhesion, and a membrane service life typically quoted at 15–20 years with planned maintenance.

Custom Design & Engineering

CI Shade uses CAD and SolidWorks for full 3D modelling and fabric patterning. We issue stamped Gulf-engineering calculations and detailed shop drawings so the client and contractor see exact connection details before fabrication. That lowers RFI counts on-site and shortens installation windows — something every contractor appreciates when working in a condensed city schedule.

Applications

PVDF membrane structures in Jeddah suit a wide spectrum of projects where long spans, daylight control and architectural character matter.

• Tensile carpark canopies for retail and mixed-use developments
• Shaded walkways and entrances at hotels and office campuses
• Pool covers and leisure-area canopies for resorts
• Stadium roofing and spectator shading for sports facilities

Materials, Specifications and Process

Typical PVDF membrane constructions use a polyester scrim or warp-knitted core coated with PVC and finished with a PVDF topcoat for UV and chemical resistance. Frames are normally fabricated from S355 or equivalent structural steel with hot-dip galvanizing plus optional paint systems for coastal projects. Our process flows from site survey to detailed engineering, off-site fabrication, pre-assembly and on-site installation with QA inspections at each stage.

Durability & Maintenance

Expect regular inspections every 6–12 months in the first two years to confirm tensioning and fastener integrity; after that, an annual check typically suffices. PVDF finishes lower dirt build-up and dramatically reduce cleaning frequency compared with uncoated membranes. We offer maintenance contracts and clear guidance on safe cleaning methods to protect the coating and seams.

Frequently Asked Questions

Here are common questions clients ask about PVDF membrane structures in Jeddah.
