Premium Fabric Materials

We offer a wide array of fabric options from top international manufacturers, running the gamut from silicon-coated woven glass fabric to architectural-grade PVC and PVDF membranes. Our materials promise longer life and better performance than standard alternatives.

PVC (Polyvinyl Chloride Coated) Membrane - Light Weight

Versatile and cost-effective solution for commercial shade structures

Technical Specifications
Weight Range: 300 to 1100 gsm
Tensile Strength: 4300/4000 N/5cm (DIN EN ISO 1421/V1)
Tear Strength: 500/500 N (DIN 53363)
Temperature Range: -30°C to +70°C
Fire Behavior: 100mm/min (DIN 75200 ISO 3795)
Key Features
UV Resistant Waterproof Humidity Proof Dust Proof Multiple Colors
Applications
Commercial & Residential Structures

Used for tensile structures, canopies, and sails covering both large commercial areas and residential patios.

Parking Shades

Popular choice for parking shade structures due to its strength and waterproofing capabilities.

Other Uses

Awnings, truck covers, and certain types of blinds and outdoor covers.

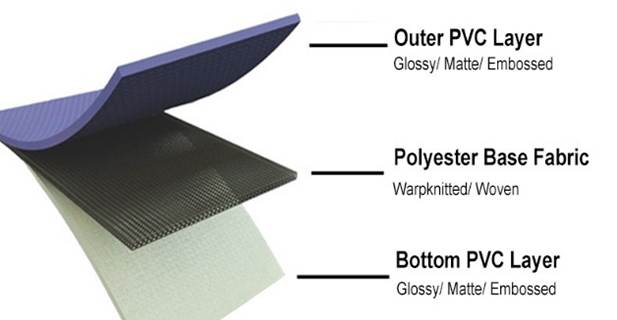

PVC Membrane Shade Structure

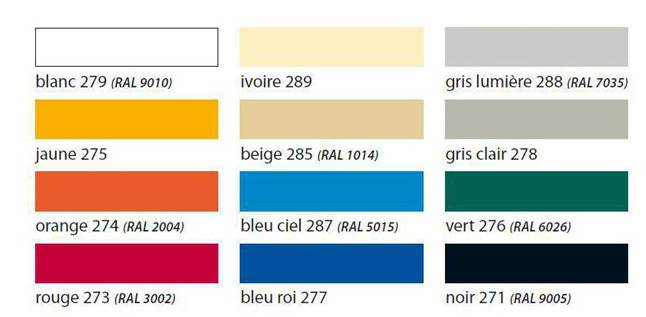

PVC Coated Fabric Application

PVDF (Polyvinylidene Fluoride) Membrane - High Strength

Premium material for large-scale architectural projects

Material Overview

PVDF fabric material is a composite material formed by coating PVC (polyvinyl chloride) resin on polyester fiber base cloth and spraying PVDF (polyvinylidene fluoride) surface coating. This premium material is produced for architectural and commercial use by leading manufacturers like French Ferrari and German Heytex.

Material Properties
  • Superior tensile strength
  • Excellent tear resistance
  • Heat resistant and durable
  • Fire resistance certified
  • Weather-resistant coating
  • Self-cleaning properties
  • Water-repellent surface
  • Light transmittance options
  • 10-25 years lifespan
Applications
Large-Scale Projects

Stadiums, airports, and canopies requiring superior durability and aesthetics.

Car Parking Shades

High-strength PVDF membrane covers for premium vehicle shelters.

Commercial Installations

Durable and low-maintenance solutions for restaurants, hotels, and retail spaces.

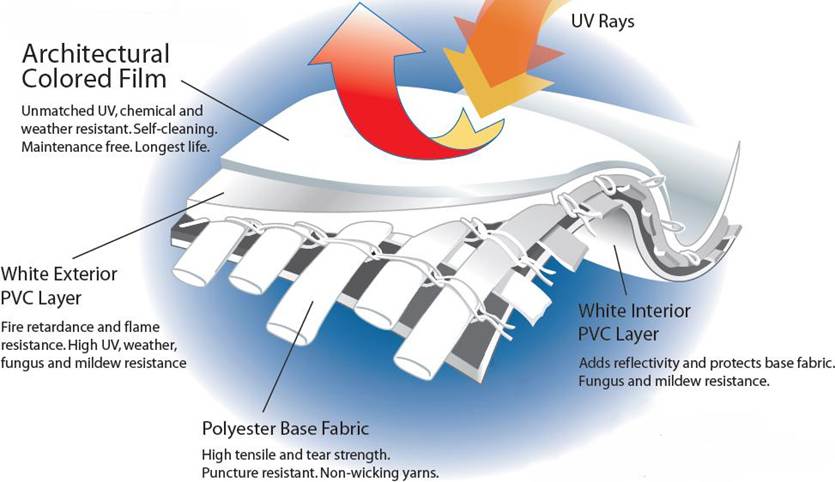

PVDF Membrane Structure
PVDF High Strength Fabric

HDPE (High-Density Polyethylene) Fabric

Breathable shade solution for sports and recreational applications

Material Characteristics

HDPE fabric is made from 100% monofilament HDPE yarn, making it lightweight yet strong. It's ideal for applications where breathability is more important than being waterproof. This woven mesh fabric is incredibly strong, lightweight, and manufactured to withstand the harshest outdoor conditions.

Key Benefits
  • Lightweight construction
  • High tensile strength
  • Excellent breathability
  • UV protection certified
  • Durable and flexible
  • Sustainable material
Applications
Sports Facilities

Providing shade for spectators and athletes while ensuring UV protection during events.

Playgrounds

Safe and breathable shade for children's play areas and recreational spaces.

Privacy Fencing

HDPE fabric wall and fence shades for privacy, wind protection, and boundary definition.

HDPE Shade Fabric
HDPE Mesh Fabric Application

Acrylic Fabric for Awnings

Solution-dyed fabric with superior fade resistance

Technical Specifications
Composition: 100% Fiber Acrylic
Weight: 290 g/m²
Width: 120 cm
Length: 60 m
Finish: Anti-stain, Rot-proof, Water-resistant
Guarantee: 5 years manufacturer warranty
Material Features

Acrylic shade fabric is a durable, weather-resistant synthetic material solution-dyed during manufacturing, resulting in superior fade resistance to UV rays. It's treated to be water-repellent and mildew-resistant for long-lasting outdoor performance.

Applications
Awnings and Canopies

Ideal for retractable awnings and fixed canopies, providing sun protection and cooling.

Shade Sails & Umbrellas

Perfect for creating sun sails and patio umbrellas with excellent UV protection.

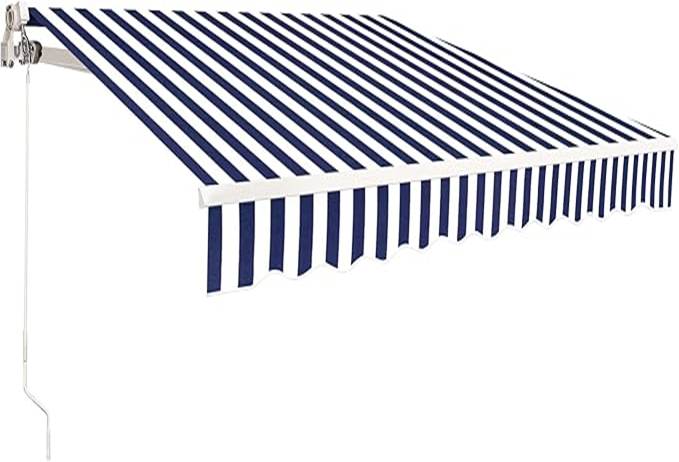

Acrylic Awning Fabric
Acrylic Fabric Colors

ETFE (Ethylene Tetrafluoroethylene)

Lightweight, transparent fluoropolymer for innovative architectural projects

Material Overview

ETFE is a clear fluoropolymer material known for its exceptional properties. It is a lightweight and highly durable material that offers several advantages in different applications. ETFE is widely used in building, construction and engineering projects due to its excellent performance characteristics.

ETFE is a highly transparent extruded film that can be used as a single layer film or as a multi-layer pneumatic inflatable cushion. The material has good UV stability as well as chemical and heat resistance. Weighing only 1% of the weight of glass, this material is revolutionizing the construction industry, allowing us to build structures that were previously unimaginable.

Structure Types
Single-Layer ETFE (Mechanically Prestressed)

ETFE can be used as a single layer membrane and tensioned with wire rope, lightweight steel or aluminum to maintain shape and stability.

Multilayer ETFE (Aerodynamically Prestressed)

Aerodynamic pads are created in two or more layers, then connected using aluminum extrusions and supported by a lightweight structure. Filled with low-pressure air, these pads provide insulation and structural stability to resist wind or snow loads.

Key Properties
  • Exceptional light transmission
  • Weighs only 1% of glass weight
  • Excellent UV stability
  • Chemical resistance
  • Heat resistant
  • Self-cleaning properties
  • Highly durable
  • Recyclable material
Typical Applications

Large-span roofing systems, skylights, atriums, stadiums, and innovative architectural projects requiring maximum natural light transmission.

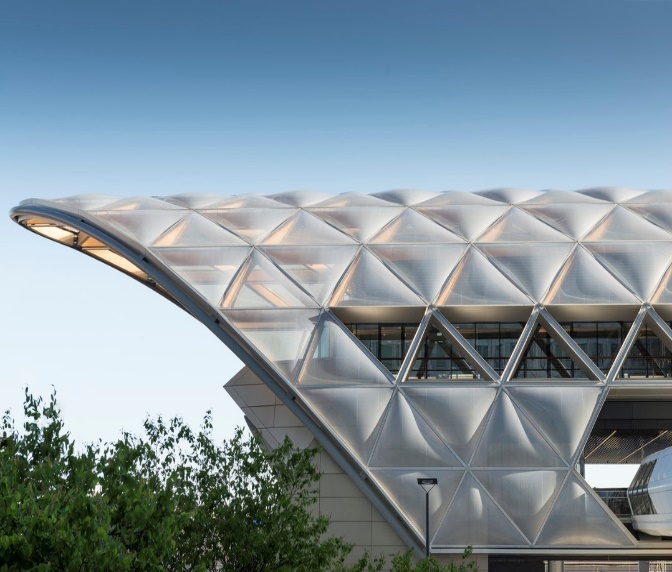

ETFE Transparent Structure

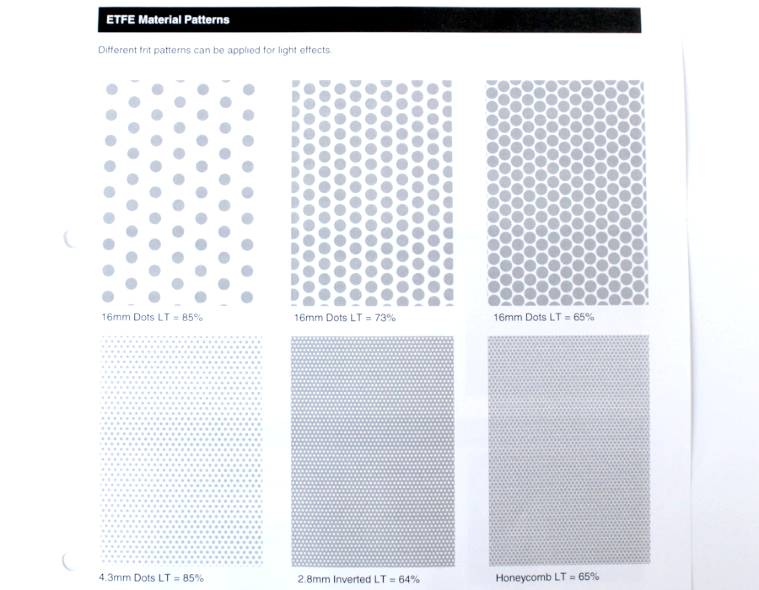

ETFE Cushion Architecture

PTFE (Polytetrafluoroethylene)

Premium fiberglass membrane with exceptional durability and performance

Material Overview

PTFE is a high-quality fiberglass woven membrane that is an ideal fabric for tensile membrane structures. PTFE fabric is high quality, weather-resistant, fire-resistant, UV-resistant, and extremely durable. The Teflon coating creates a smooth surface that allows the fabric to be "flushed" by rainwater, reducing the need for frequent cleaning.

The membrane exhibits elasticity under normal conditions and will not creep or stress relax, with a life expectancy of over 30 years and a standard PTFE warranty of 12-15 years.

Technical Specifications
Temperature Range: -70°C to +230°C
Solar Reflectivity: Up to 80%
Solar Absorption: 8-14%
Light Transmission: Up to 12%
Life Expectancy: 30+ years
Warranty: 12-15 years
Key Features
Fire Resistant Self-Cleaning UV Resistant Anti-Fouling High Reflectivity
Material Properties
  • High durability (30+ years)
  • Excellent fire resistance
  • Anti-fouling properties
  • Superior UV resistance
  • Extreme temperature resistance
  • Excellent optical properties
  • No creep or stress relaxation
  • Self-cleaning surface
Applications
Large-Scale Structures

Stadiums, commercial centers, airports, railway stations, and amphitheaters.

High-Performance Sunshades

Ideal for sunshade structures due to high solar reflectivity and heat resistance.

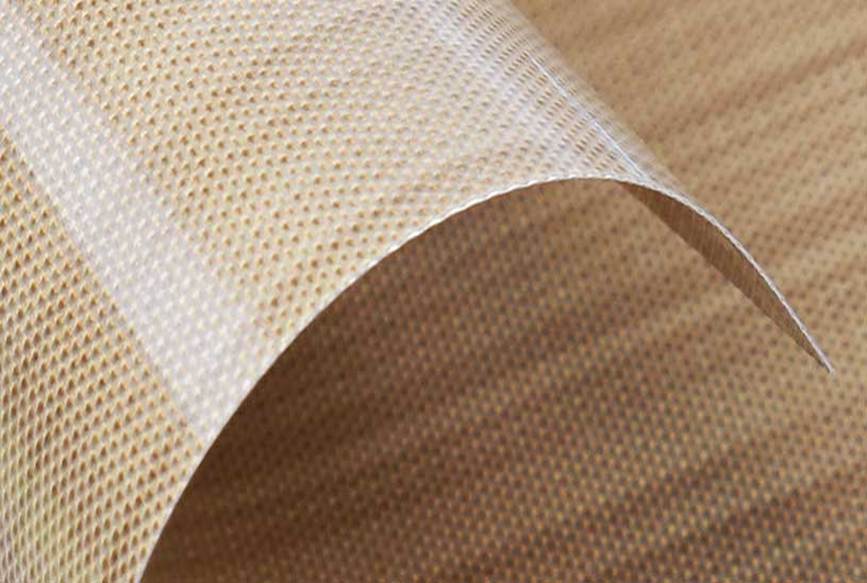

PTFE Membrane Structure

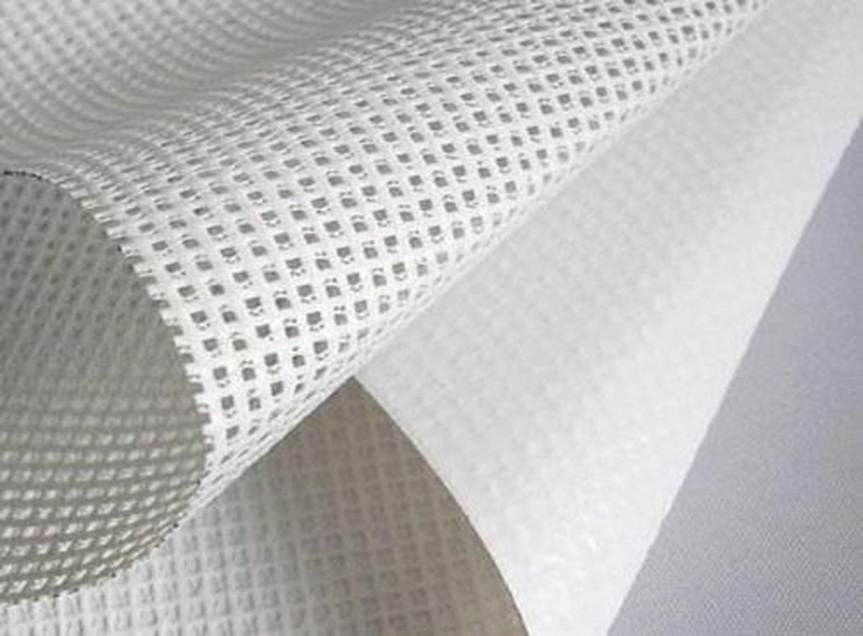

PTFE Fiberglass Fabric

Material Comparison Guide

Material Best For Lifespan Waterproof Breathable
PVC Membrane Commercial parking, residential shades 10-15 years Yes No
PVDF Membrane Stadiums, airports, large structures 15-25 years Yes No
HDPE Fabric Sports facilities, playgrounds, parks 8-12 years No Yes
Acrylic Fabric Awnings, umbrellas, canopies 5-10 years Water-repellent Limited
ETFE Skylights, atriums, innovative architecture 25-35 years Yes No
PTFE Premium stadiums, airports, long-term structures 30+ years Yes No
